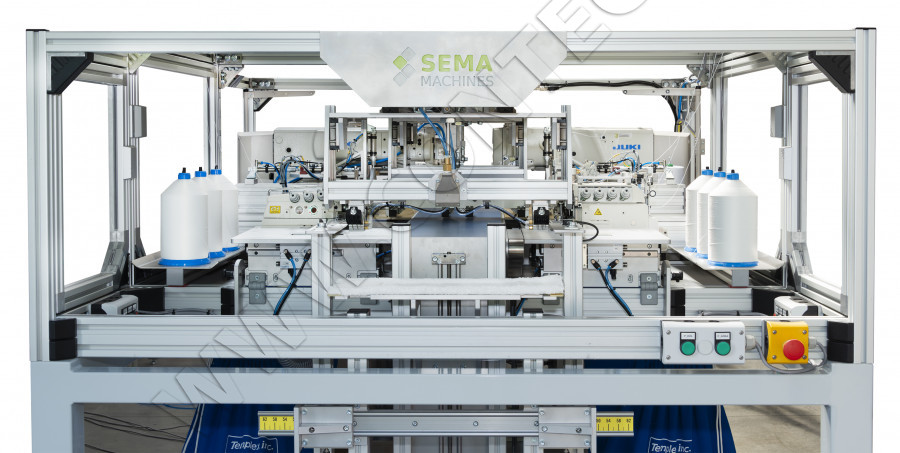

SEMA MPS Automatic mop insert sewing and folding station

TECHNICAL DATA:

• Solution based on 2 Pegasus overlock (left and right ) and 2 Juki AMS machines
• Quick & easy mop size adjustment system
• Optional roll mop cutter
• Option to pick up mops from the tray
• Automatic bobbin thread control system
• Machine can work in automatic mode without the presence of the operator
• Automatically collecting mops from the tray
• Station can work in a linear system with an additional cutting knife option
• Module construction – can be part of production line



BENEFITS :

• Reduction of employees involved in process
• 100% repeatability
• Short amortization time



MACHINE CAN WORK IN TWO PROCESSES:

1. Picking up a semi-finished product from the stockpile
2. Working with the production line that prepares the
semi-finished product

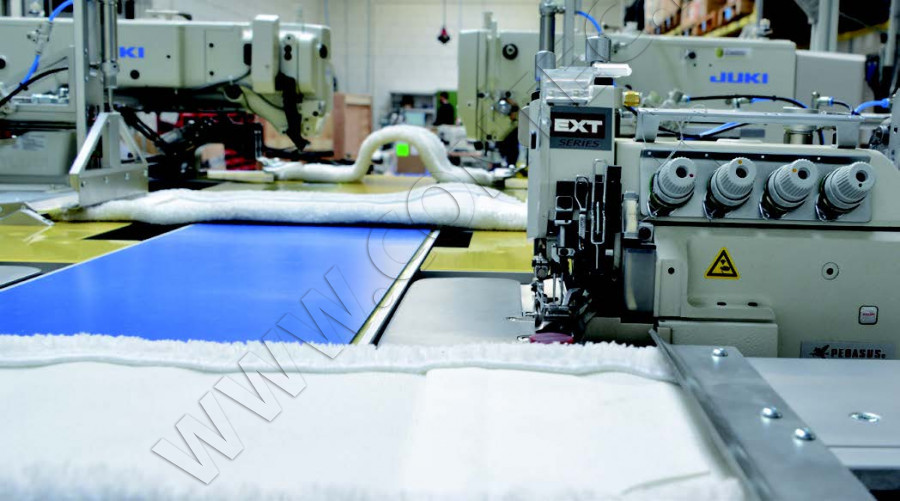

DESCRIPTION OF THE OPERATION PERFORMED BY THE MACHINE:

• Semi-finished mop is overlocked on the short sides -at the same time left and right side

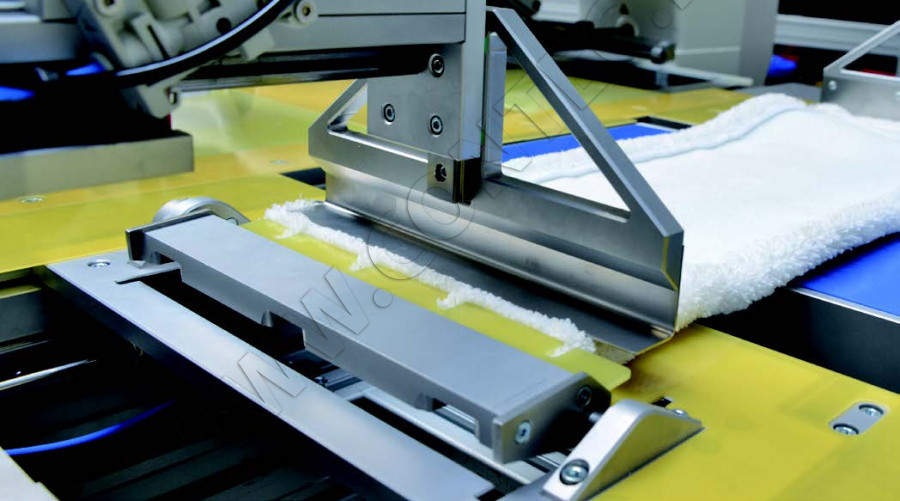

• Automatic folding of the short sides
• Process of bartack sewing with 2 Juki AMS machines
• Finished product can be let outside the machine, for example, into the packing zone product
